The CK Large Diameter Gas Saver T front end is used to provide an inert atmosphere for the welding of reactive metals such as titanium, molybdenum, nickel-based and aluminium-based alloys, as well as non-reactive metals like stainless steel. This design is lightweight, allowing for operator comfort and accurate control. The front end also uses a clear Pyrex cup creating excellent visibility of the weld puddle.
The clear cup features an inside diameter of 1 1/8" (28.57mm) which is the largest cup orifice available on the market today. This design offers a replaceable, interchangeable tungsten adaptor; and a universal collet body, creating less inventory, and allowing inexpensive screen replacement. Tungsten stick-out can be up to 2" (50.8mm) in certain conditions.
This kit allows welders to weld low amperage Titanium without a trailing shield. Great for tack welding outside of an inert chamber and repairs of small cracks. 2 Series Fits 9 & 20 Torch Models.

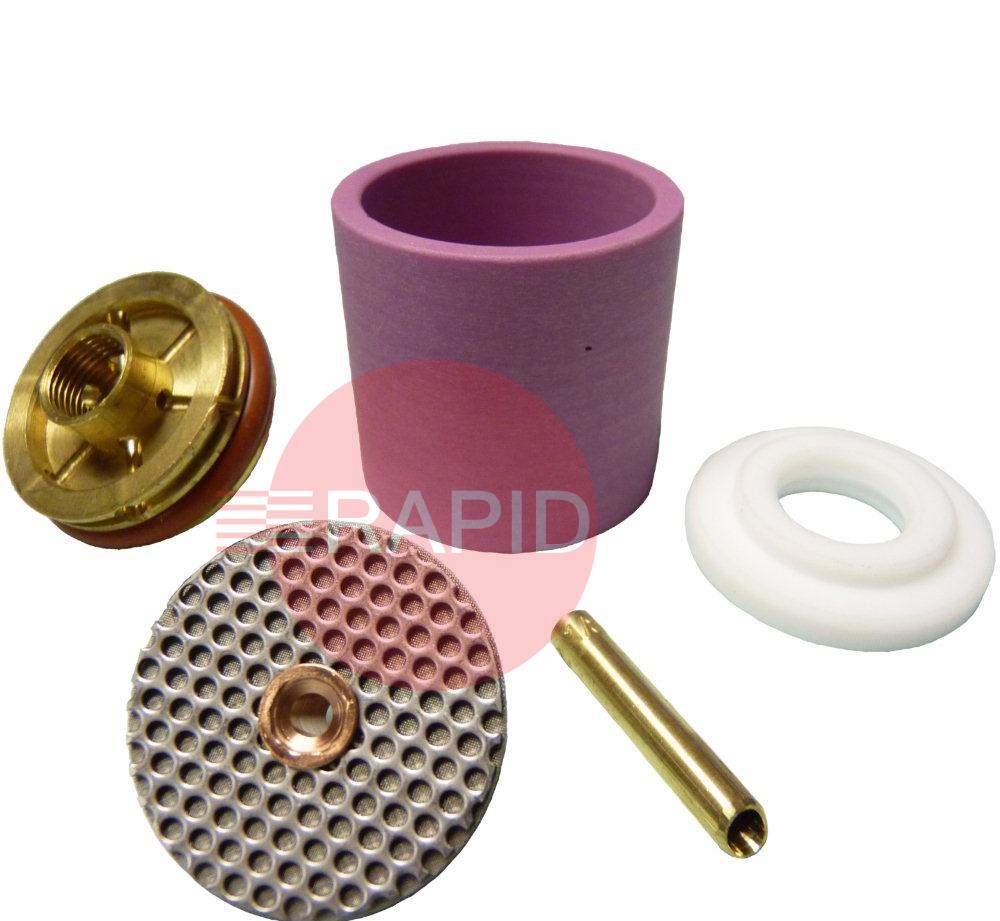

| Part # |
Description |
Quantity |
| 2A18GSLD |
CK Large Diameter Alumina Cup - 2 Series Gas Saver, 28.6mm bore x 32.6mm length |
1 |
| 2C332GS |
CK Wedge Collet - 2 Series Gas Saver, 2.4mm |
1 |
| 2HSGSLD |
CK Large Diameter Heatshield - 2 Series Gas Saver |
1 |
| 2CBGSLD |
CK Large Diameter Collet Body - 2 Series Gas Saver, One Size Fits All |
1 |
| TAS332GSLD |
CK Large Diameter Tungsten Adaptor - 2/3 Series Gas Saver, 2.4mm |
1 |
