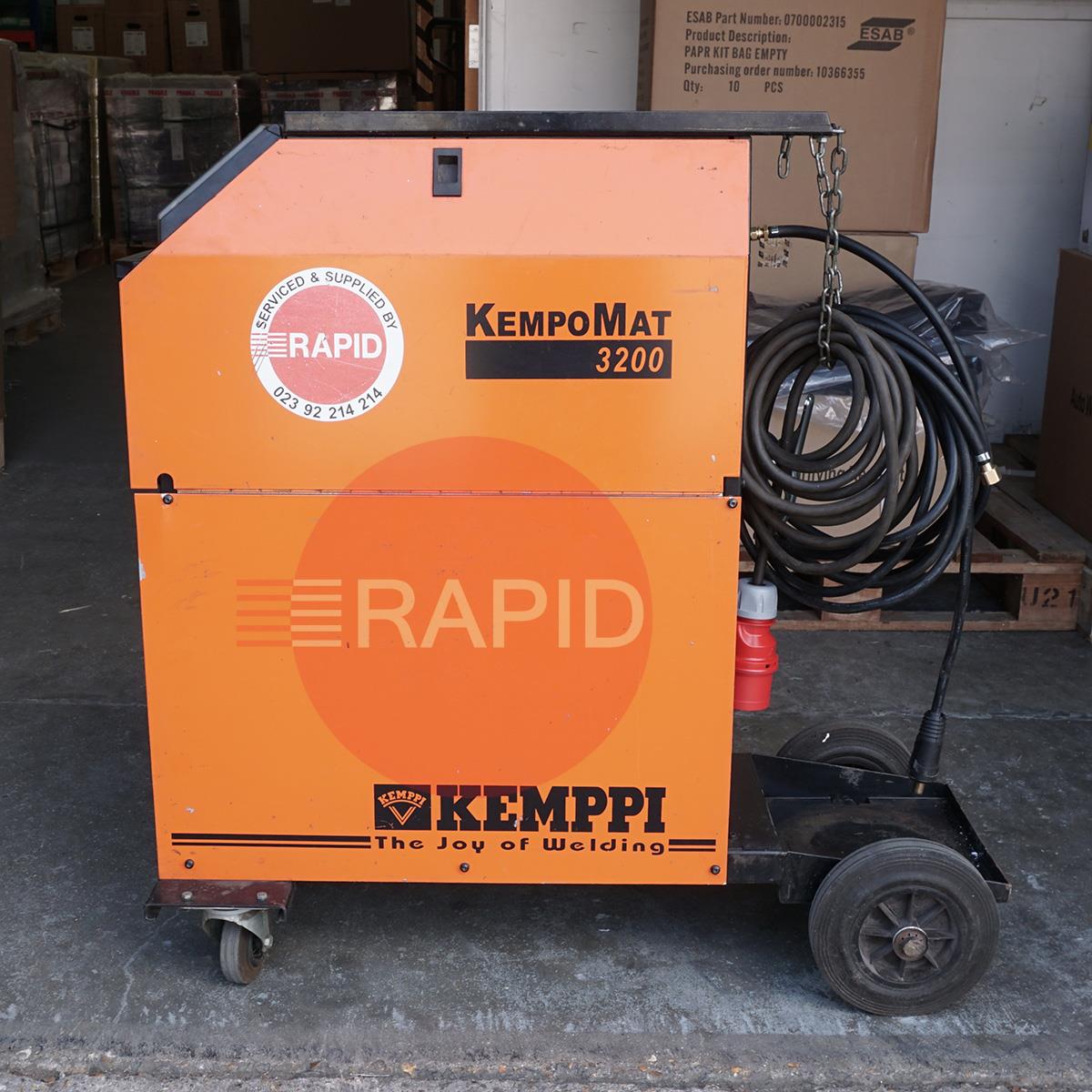

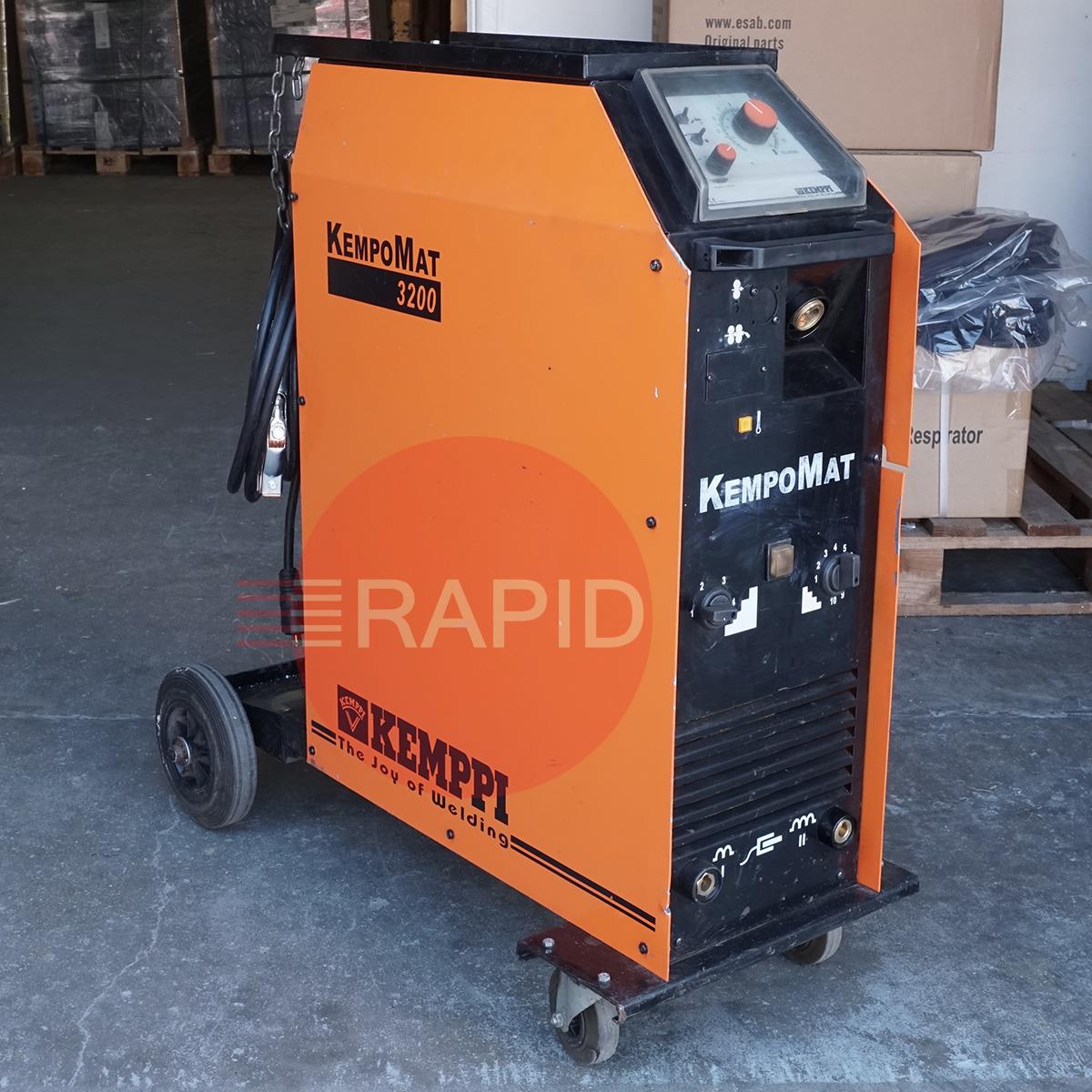

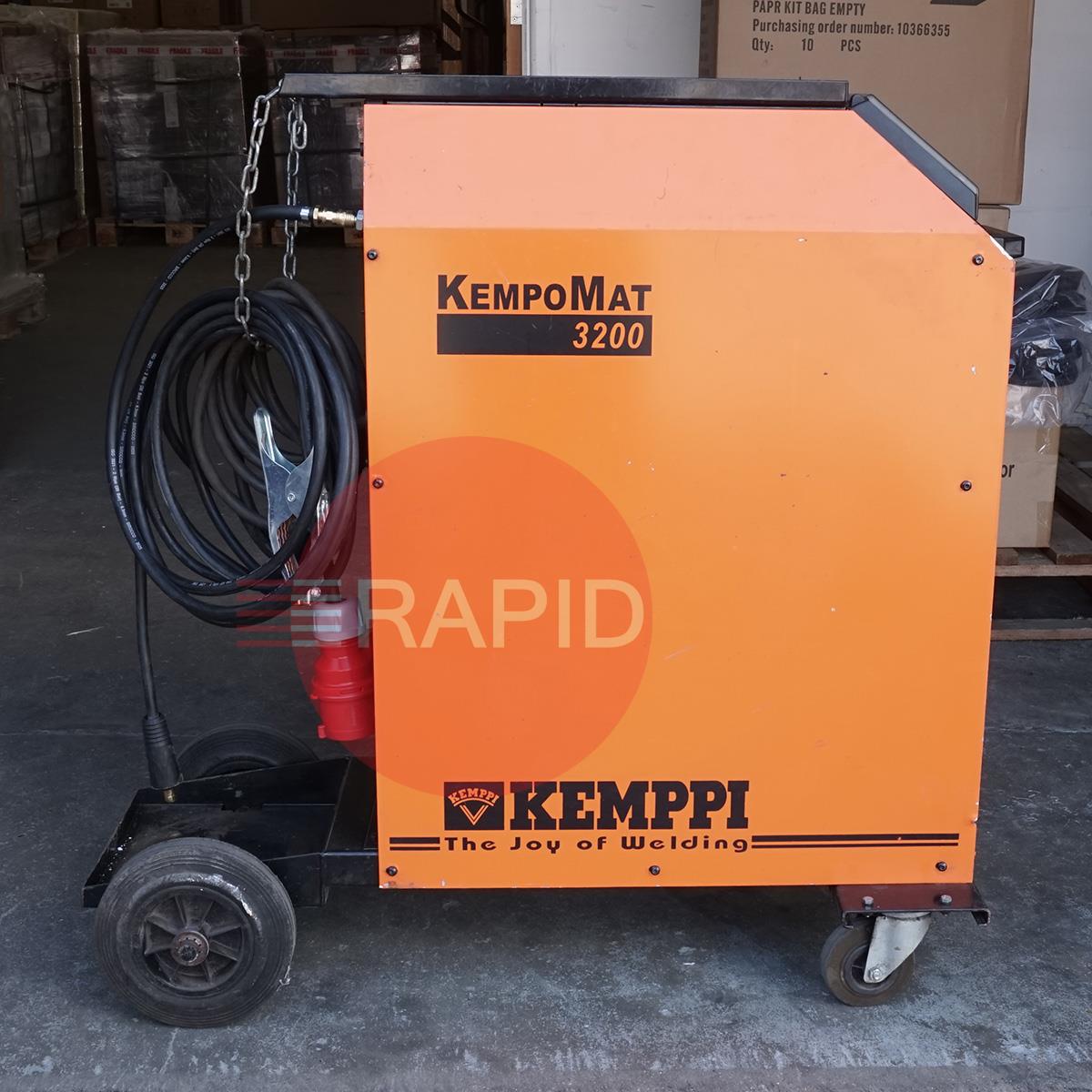

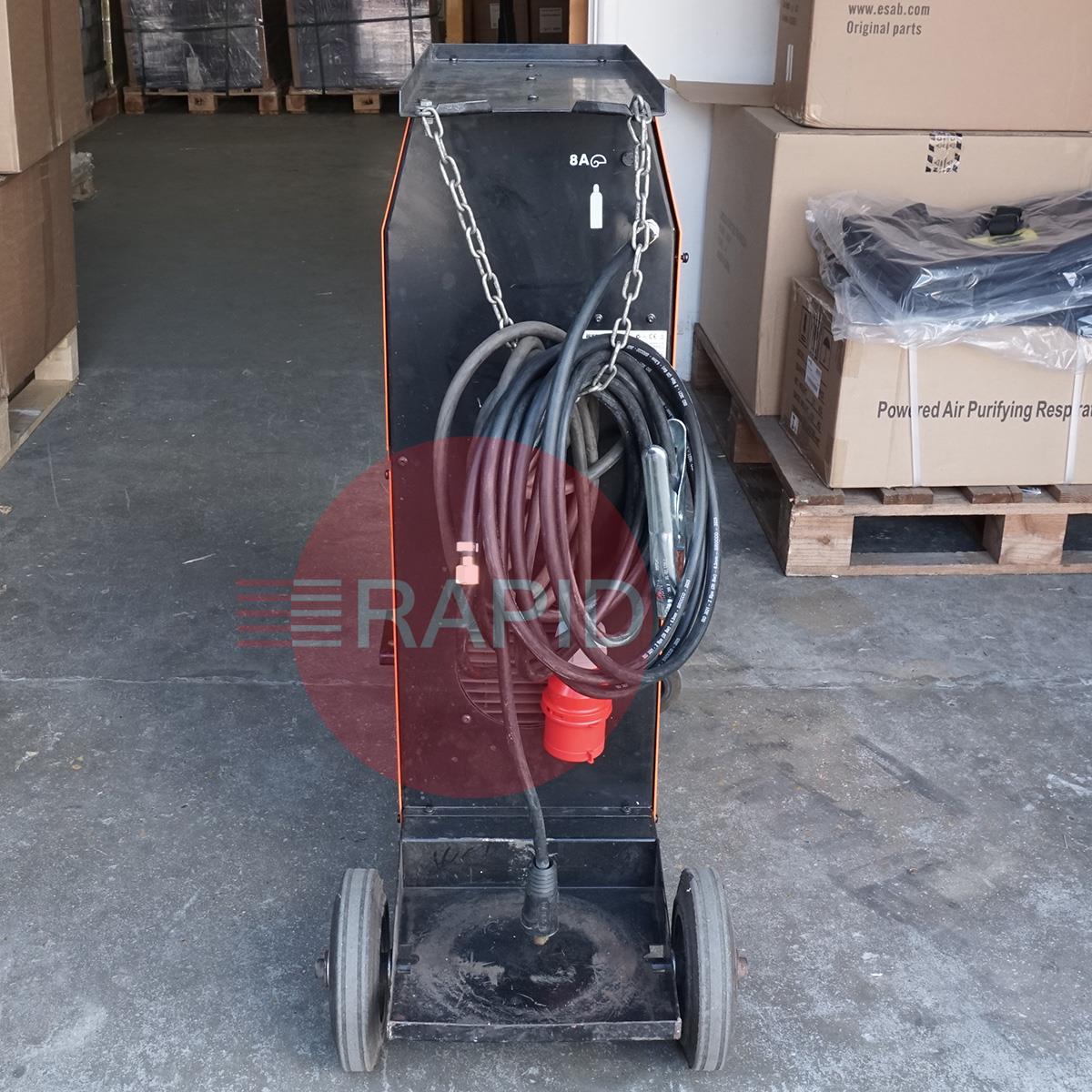

This used power source includes 1.0-1.2mm drive rolls, earth return lead, gas hose and power lead with 400v plug. No MIG torch is included but can be supplied at extra cost if required.
Traditional step regulated power sources, strong and enclosed wire feed systems, plus integrated cylinder carriages make KempoMat ideal for professional users specialising in steel fabrication. The KempoMat name stands for no nonsense dependability and reliability and provides the welding power to meet your needs.

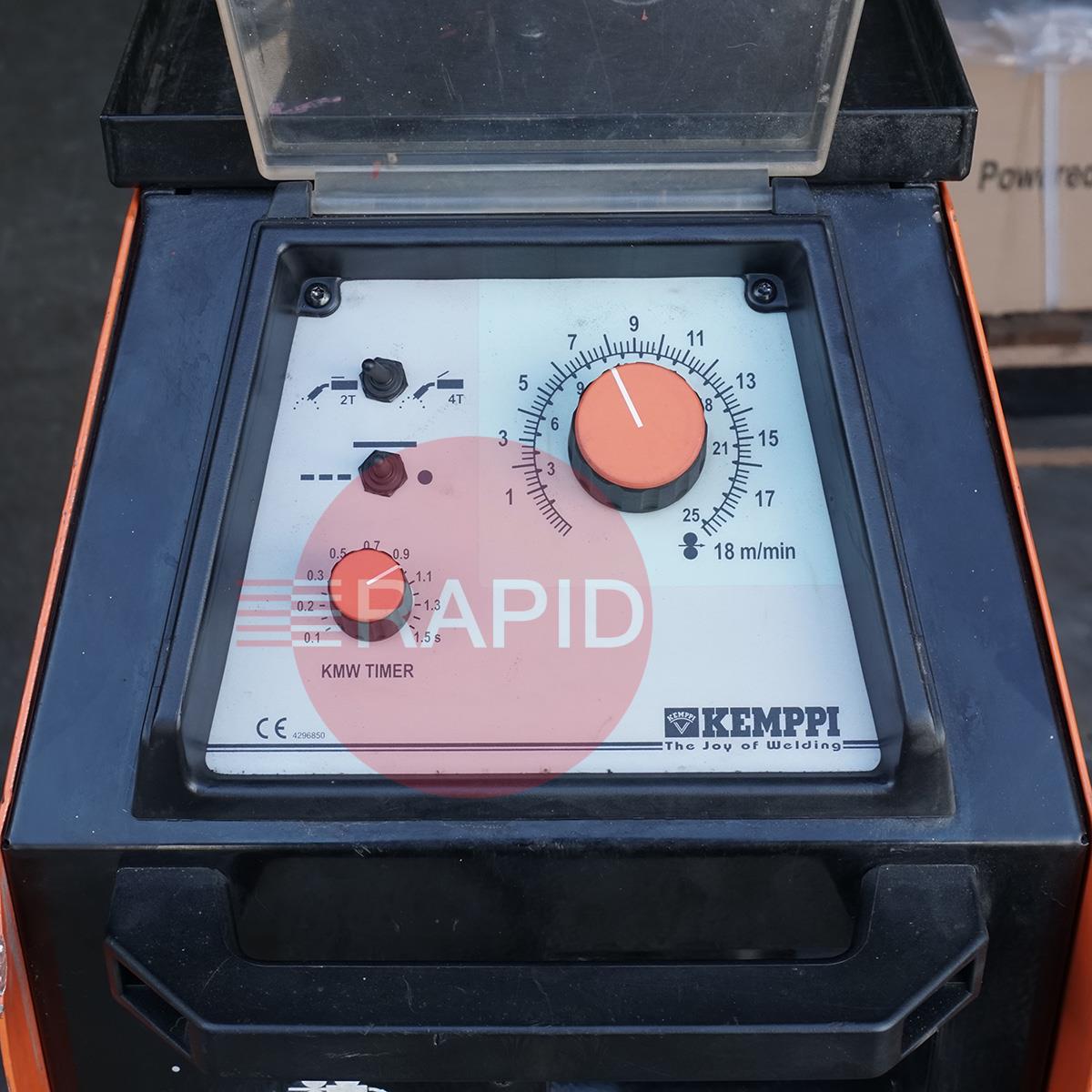

Robust construction and heavy-duty feed mechanisms ensure reliable filler wire delivery. Reduce operator fatigue and increase welding performance with cycle arc and spot welding timer, 2T/4T gun sequence function, burn back control.

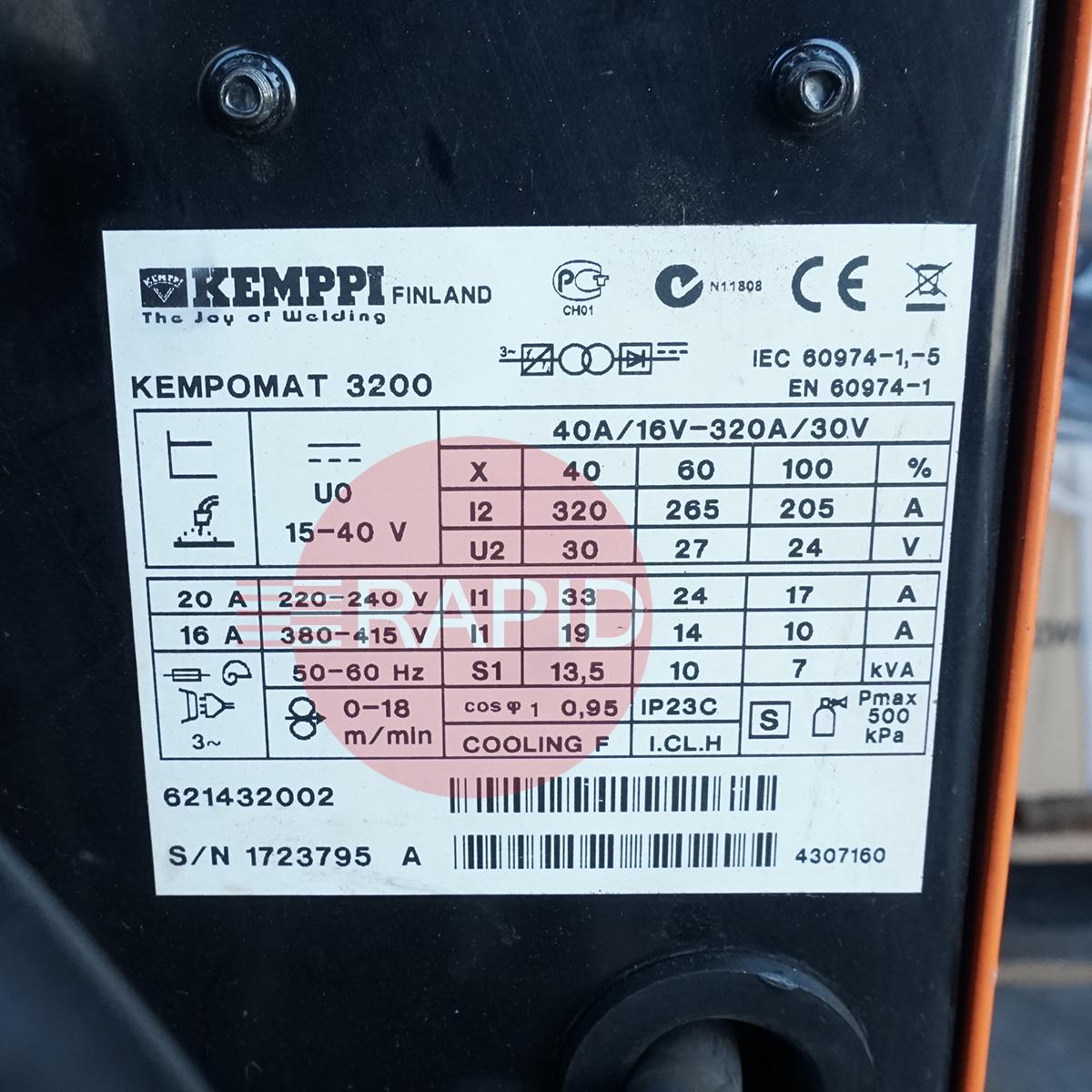

Technical Specifications
- Rated voltage: 400 V 3ph
- Connection voltage: 380 V -10% ... 415 V +6%
- Rated power at max. current (40 % ED): 13,6 kVA
- Rated power at max. current (60 % ED): 10,0 kVA
- Rated power at max. current (100 % ED): 6,6 kVA
- Load capacity 40 °C (nominal values) (40 % ED): 320 A / 32 V
- Load capacity 40 °C (nominal values) (60 % ED): 265 A / 27 V
- Load capacity 40 °C (nominal values) (100 % ED): 205 A / 24 V
- Control range: 40 – 320 A / 15 – 23 V
- Voltage steps: 40 steps
- Open circuit voltage max.: 42 V
- Efficiency at max. current: 75% (320 A / 32 V)
- Power factor at max. current: 0,95 (320 A / 32 V)
- Fuse, delayed: 8 A
- Wire feed mechanism: 4 wire feed
- Diameter of feed roll: 3.2mm
- Wire feed speed (I): 0 – 18 m / min
- Wire feed speed (II): 0 – 25 m / min
- Filler wires (ø Fe, Ss): 0,6 – 1,2 mm
- Filler wires (ø Cored wire): 0,8 – 1,6 mm
- Filler wires (ø Al): 1,0 – 1,6 mm
- Wire spool: 20 kg, ø 300 MM
- Gun connector: Euro
- Temperature class: H (180 °C)
- Operating temperature range: -20 ... +40 °C
- Storage temperature range: -40 ... +60 °C
- Degree of protection: IP23S
- EMC class: A
- External dimensions: 970 x 480 x 970 mm
- Weight: 118 kg
